Configure email accounts for my Cloud server: Mail OSX

⚠️ These settings for email accounts are only valid for Cloud servers with Linux Debian 10 or higher operating system versions. ⚠️

Configure the mail account in Mail OSX

The Mac mail settings are a bit different from the rest of the settings, so we'll need to pay special attention to specific setup details.

The data that we must take into account for the configuration of the email account are the following:

  • Incoming mail server
  • Outgoing mail server
  • Account name
  • Password
  • SMTP port: 587
  • IMAP port: 143
  • POP3 port: 110
  • Protocol: Start TLS

It is very important that we take this first detail into account: the mail settings on Mac cannot be done via the TLS security protocol, but rather via SSL. It is an equal security protocol, however, it is not the one that has been standardized for mail servers. Even so, it is possible that Mac does not accept the configurations with security protocols, so we will have to leave it disabled for some accounts.

We open the Mail application on our computer:

enter image description here

If it is the first time that we configure an email account on our computer, the welcome message will skip and it will ask us to select what type of account we want to configure.

enter image description here

We select "Another Mail account" and click on "Continue":

enter image description here

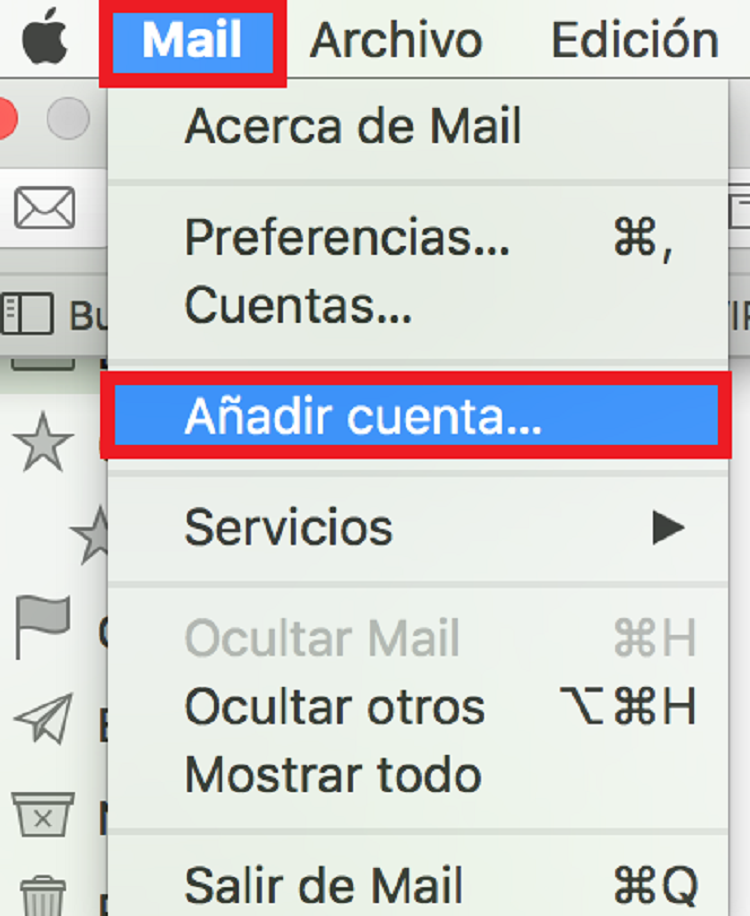

In case of having already configured an email account in the mail manager, we must access the mail configuration through the Mail tab. We open the drop-down and select "Add account":

enter image description here

For both cases, the wizard box to add email accounts will open. We fill in the corresponding data: our * name *, * email * and * password *. When we finish, click on "Start session":

enter image description here

We remember that from SWPanel you will not be able to see the information about the password of the email account, because in compliance with the ISO 27001, the LOPD and the RGPD, we do not store or provide personal keys, as well as we do not have access to the Email account keys we don't even provide them.

As soon as we have pressed the button, the dialog box will go blank and the automatic configuration of the service will start.

The system may automatically detect the settings and proceed to finalize the account creation process. At this point, we will select which elements we want to configure (mail and notes). Click on "Accept" and the configuration will be finalized:

enter image description here

However, the most common is that the system does not recognize the incoming and outgoing servers, so you will get an error message stating that "The name or password could not be verified" and we will have to enter the parameters manually.

enter image description here

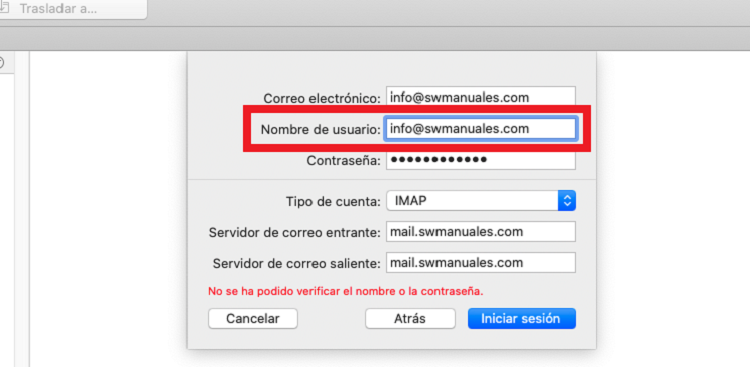

In this step it is very important to keep in mind that in "Username" we should not put the username as such, but the email address

enter image description here

We can also select the incoming mail protocol, that is, if we want our account in IMAP or POP3:

enter image description here

As soon as the account configuration is finished manually, the account creation process will be completed. At this point, we will select which elements we want to configure (mail and notes). Click on "Accept" and the configuration will be finalized:

enter image description here

Finally, we should see our account correctly configured:

enter image description here

During the configuration process, if you have configured the email account with an SSL certificate, we may receive a message about verifying the identity of the server. In this case, we accept the message by clicking on "Continue":

enter image description here
