Configuration of my Shared Hosting email accounts

Mail protocols

The email account can be configured according to two types of incoming protocol: IMAP or POP3. Outgoing mail is always configured with the SMTP protocol.

Configuring our email account with the POP3 protocol allows us to download messages locally (on our computer) instead of keeping them on the server, with the consequent space savings that this implies. Messages will be saved locally, so if accessed from another location or device, they will not be accessible.

Configuring our email account with the IMAP protocol allows us to consult the messages from any place and device since they always remain stored on the server, even preserving our folder distribution. Since the messages will be saved on the server, the use of space on the server will be higher. Likewise, we can configure the time that the copies stored on the server remain.

Security protocols

When we send an e-mail from any mail manager, we can do it through the standard ports or the secured ports.

Standard ports

These are the ports through which unsecured mail is sent. Usually, they are the ones that companies enable by default.

For sending mail (SMTP protocol), Port 25 is used (although in some cases, Port 26 is also used).

To receive the mail, the ports used are Port 143, for the IMAP protocol, and Port 110, for the POP3 protocol.

Using these ports is not normally recommended due to their lack of security and encryption.

Secure ports

These are the ports through which encrypted mail is sent. When we activate the Start TLS and SSL security protocols by obtaining a Certificate for our domain, the mail configuration can be done with the ports that are commonly used in secure mail.

For sending mail (SMTP protocol), Port 587 - Start TLS is used (in the case of Mail OSX, Port 465 - SSL is used).

To receive the mail, the ports used are Port 143 - Start TLS, for the IMAP protocol (in the case of Mail OSX, Port 993 - SSL is used), and Port 110 - Start TLS , for the POP3 protocol (in the case of Mail OSX, Port 995 - SSL is used).

How to activate the security protocols in my Hosting

By default, the Cloud comes without activated security protocols (Start TLS and SSL). To do this, we must activate them manually, without activation or maintenance costs.

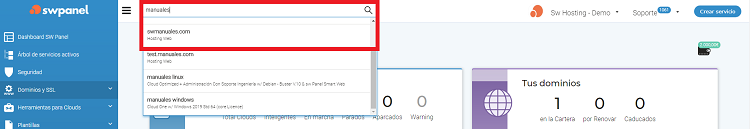

In the search bar at the top of the Panel, we enter the name of the Hosting service in which we want to activate the security protocols. Once it appears, click on it to access the Dashboard:

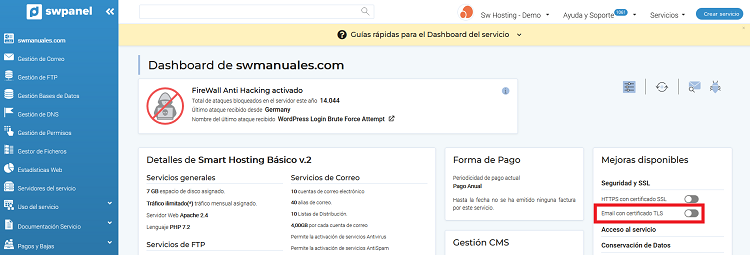

Within the Dashboard of the service, click, in the right box of "Available improvements", the button "Email with TLS certificate".

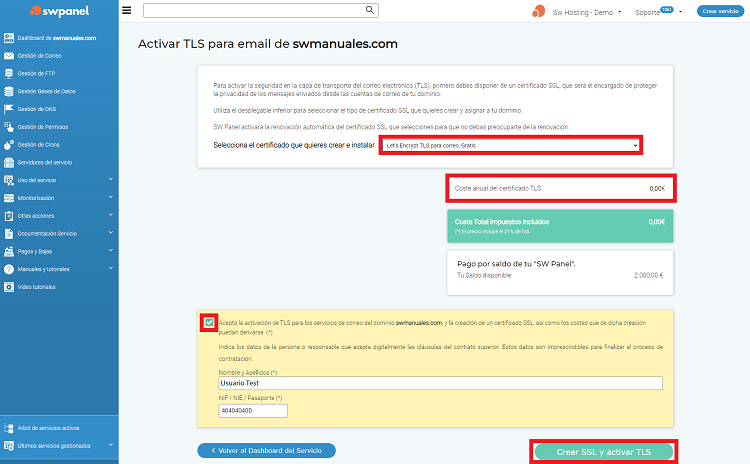

The TLS activation window will open. We check that the configuration is correct (Let's Encrypt Free Certificate) and click on "Create SSL and activate TLS":

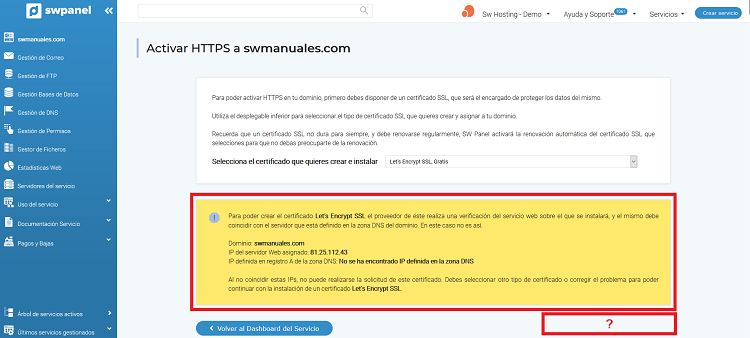

In order to create the Let's Encrypt SSL certificate, its provider performs a verification of the web service on which it will be installed, and it must match the server that is defined in the DNS zone of the domain. That is, we must bear in mind that the SSL certificate can only be installed if the IP of the assigned Web server and the one defined in the A record of the domain's DNS zone coincide; the domain must point correctly to our services.

If the parameters do not match, the system will not allow you to create the SSL.

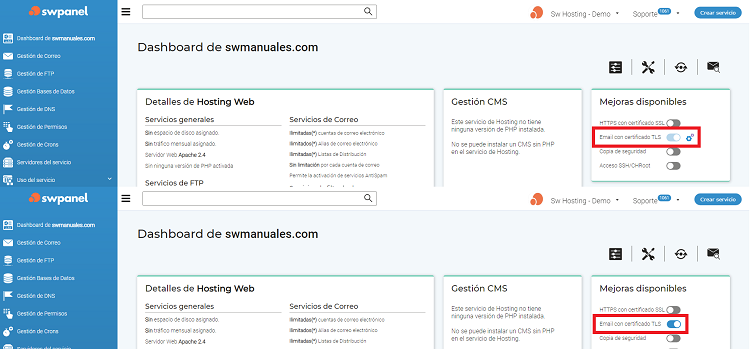

As soon as the activation is complete, the "Email with TLS certificate" button will be in blue (some loading wheels will be visible while it is being created):

Mail accounts

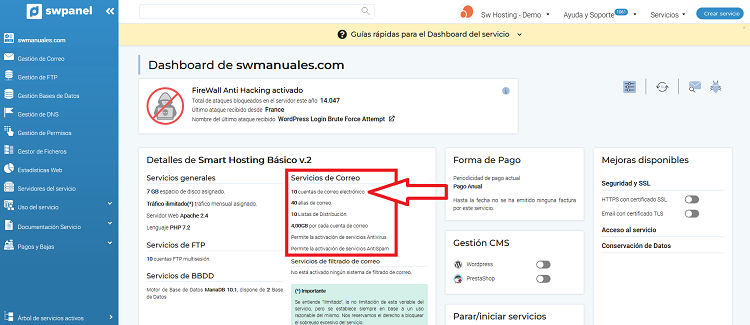

Within a Shared Hosting you can have the number of email accounts that are specified at the time of hiring. You can see the number of email accounts that can be created in your service in its dashboard, in the specifications box.

Create email accounts

To create our first email account, we access the Dashboard of the service.

In the search bar at the top of the Panel, we enter the name of the Hosting service in which we want to activate the security protocols. Once it appears, click on it to access the Dashboard:

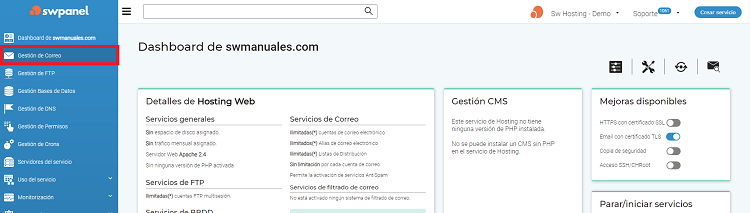

Within the Dashboard of the service, in the left side menu, click on "Mail Management":

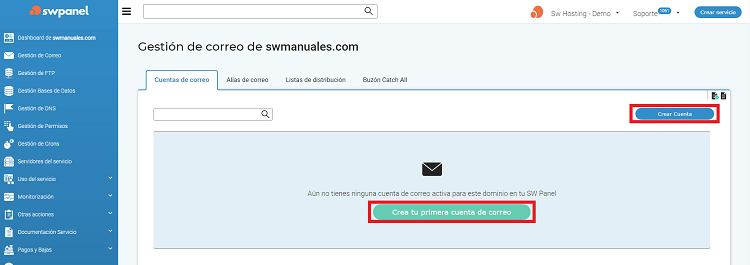

The mail screen will open. In case you have not created an email account, we will see the example image. Within the screen, click on "Create your first email account" or "Create account":

The wizard will open to Create email account (it does not matter which way we enter, the wizard will be the same). In the wizard we will be able to configure two elements, the Account data and the Mail forwarding customization.

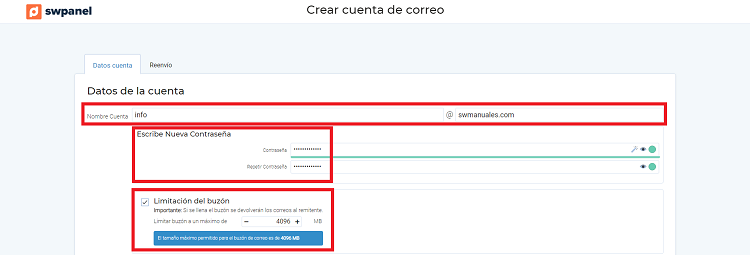

Account data

In this tab, we are going to customize:

• Account Name: we specify which account will be (for example: info@swmanuales.com, administracion@swmanuales.com, useriotest@swmanuales.com).
• Password: we specify which will be the password to access the email account. In compliance with the ISO 27001, the LOPD and the RGPD, we do not store or provide personal keys, just as we do not have access to email account keys, much less do we provide them, so it is important remember this key. In case of losing it, it can be modified later through the SWPanel.
• Mailbox limitation: to limit the mailbox space to the amount we choose within the maximum allowed parameters. If the mailbox space is limited and it fills up, messages that cannot be entered due to lack of space will be returned to the sender.

Forwarding

Optional. In this tab, we can specify if we want the emails we receive in the mailbox we are creating to be forwarded to another account. We can specify several accounts to forward to, separating the different accounts by a semicolon (;)

We can also specify if we want to Save a copy of the email in the account before forwarding it or not. Important, by marking the check we select that we do want to save a copy of the email in the account. If it is not marked, the copy will not be saved.

Finally, click on "Create account":

If we create multiple accounts, by default, it will not allow us to repeat any password.

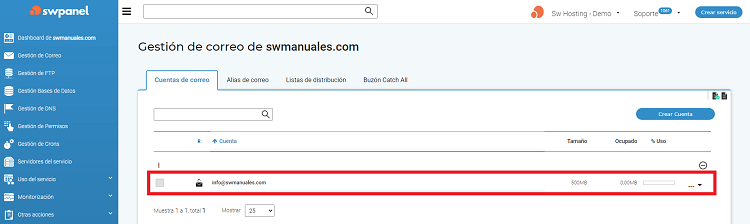

Once it has been created, it will appear on the mail management screen, with the characteristics that we have configured, so that we can see all our accounts and their status at the same time:

We must bear in mind that for the installation of WordPress, if we have installed it, we will need an administration email account (for example admin@swmanuales.com), so if we have a Smart Hosting Free, we will not be able to create more accounts of mail and we must use it.

First steps to configure your email account

To configure the email account that we just created (or any other that we already have), we must see, first of all, the details of it.

We must bear in mind that each mail manager is configured in a different way, so that in this manual you will see how to configure your mail account with security and encryption protocols (Smart TLS / SSL) in the following mail managers:

• Thunderbird
• Correo de Microsoft
• Android
• Outlook
• Mail OSX
• Mail Apple iOS

How can I see the details of the email account?

If we want to see the use, redirects and automatic messages of our accounts, we must go to the detail of the email account.

In the search bar at the top of the Panel, we enter the name of the Hosting service in which we want to activate the security protocols. Once it appears, click on it to access the Dashboard:

Inside the service Dashboard, on the left side menu, click on "Mail Management":

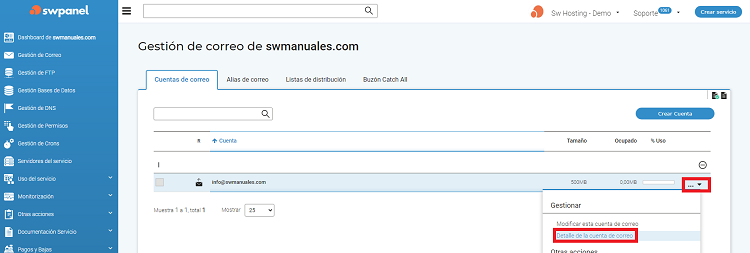

The mail screen will open. We look for the email account that we want to configure in the email manager, open the drop-down on the right of the account [...] and click on "Email account details":

Within the detail of the email account, we can see different information. Here we can only see information about the account, but we will not be able to configure anything:

• Account name: the name of the email account.
• Space usage information: a graph that reports on the total space allocated to the email account, the space that is occupied and the space that is available.
• Mail forwarding: detail of the mail forwarding that the account performs
• Automatic reply: information on the automatic reply generated by the email account as soon as it receives a message in your mailbox.

Where do I find the mail server to configure my account?

In order to configure the email account in any manager, we must be clear about the incoming and outgoing mail server. This data, on many occasions, will be configured automatically, but the manager could ask us to fill in the data manually.

In the search bar at the top of the Panel, we enter the name of the Hosting service in which we want to activate the security protocols. Once it appears, click on it to access the Dashboard:

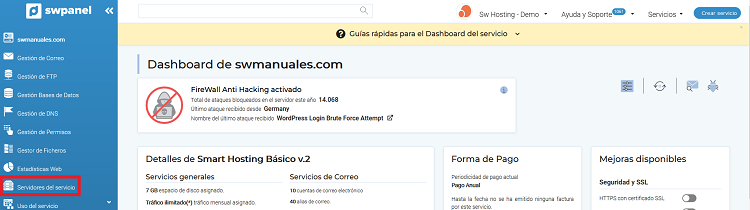

Once inside the service dashboard, in the blue side menu, click on "Service servers":

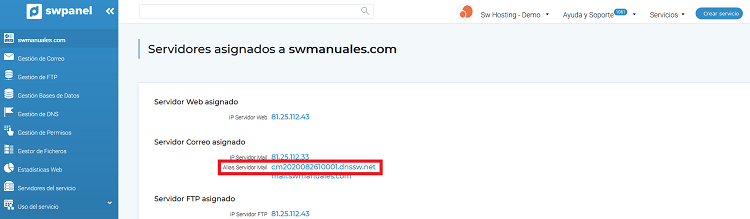

Once inside, we will see the data corresponding to "Assigned Mail Server". We must pay attention, the server name that we will use will be the one that corresponds to a cloud (for example "cm2020082610001.dnssw.net", in no case the one that corresponds to "mail.yourdomain.com"):
