Configure email accounts of my Shared Hosting: Outlook

Configure the email account in Outlook

In offices and personal computers, one of the most used programs is Microsoft Outlook as a mail manager for corporate mail accounts or personalized mail.

The data that we must take into account for the configuration of the email account are the following:

  • Incoming mail server
  • Outgoing mail server
  • Account name
  • Password
  • SMTP port: 587
  • IMAP port: 143
  • POP3 port: 110
  • Protocol: Start TLS

Let's see first how to configure Outlook if it is the first time you access it. Later, we will see how to configure it if we already have an account previously configured.

Set up an email account for the first time

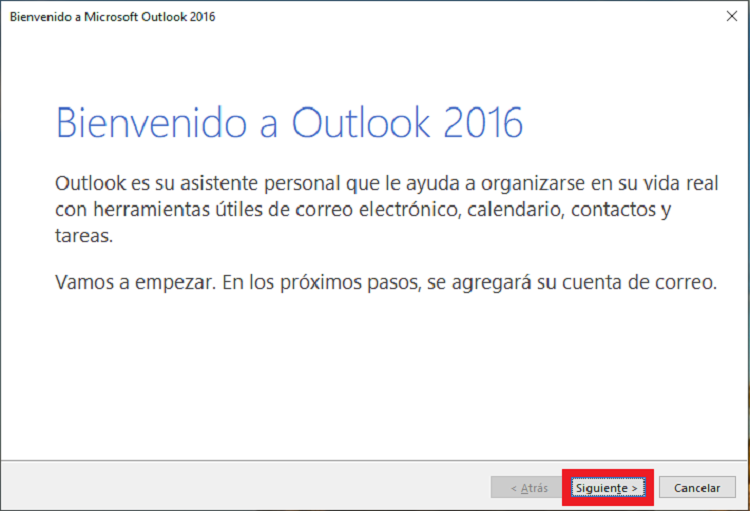

We open the application. Your welcome to Outlook message will open. Click on next:

enter image description here

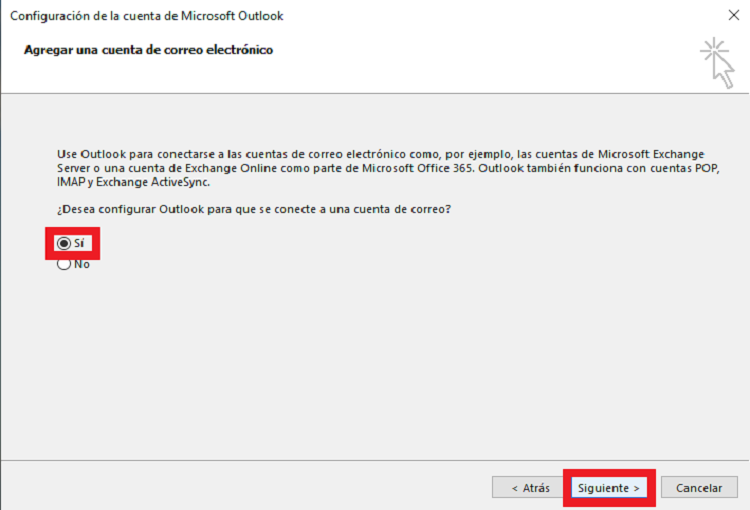

You are going to ask us if we want to configure our Outlook account to connect to an email account. We mark yes and click on next:

enter image description here

Automatic account setup will open. We must fill it in with the requested fields, Name (it is not necessary to specify any specific information, we can put the name we want), the email address to configure and the password to access the account:

enter image description here

We remember you that from SWPanel you will not be able to see the information about the email account password, because in compliance with ISO 27001, the LOPD and the RGPD, we do not store or provide personal codes, as well as we do not have access to the Email account keys we don't even provide them.

The moment the automatic configuration starts, Outlook will detect that the SSL certificate (if it has a certificate) is not "trusted". As in the case of Google, Microsoft only detects its own certificates as trusted certificates, that is, those that correspond to "hotmail.com", so we should not worry or think that our certificate is invalid, Unlike.

In order to proceed without any problem, we must follow a few extra steps.

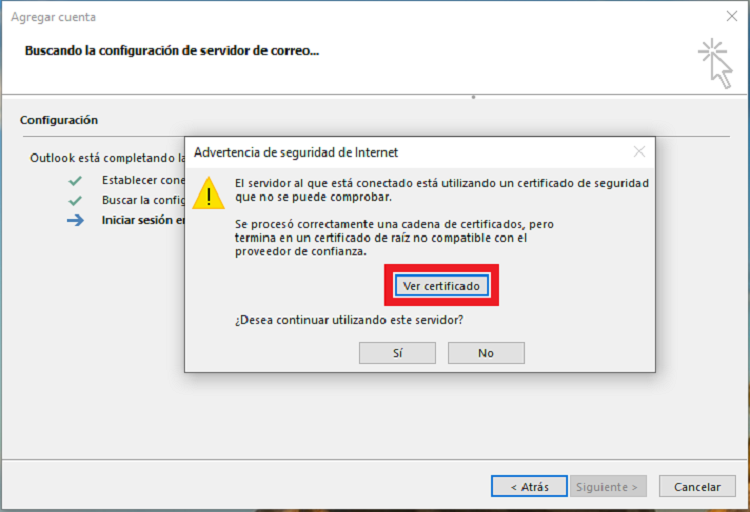

Once the message appears, click on "see certificate":

enter image description here

In the certificate information window, we check that the data of the server for which the certificate is issued are correct (our Cloud mail server should appear under the name of the certificate), as well as the expiration date of the certificate, and click in "install certificate":

enter image description here

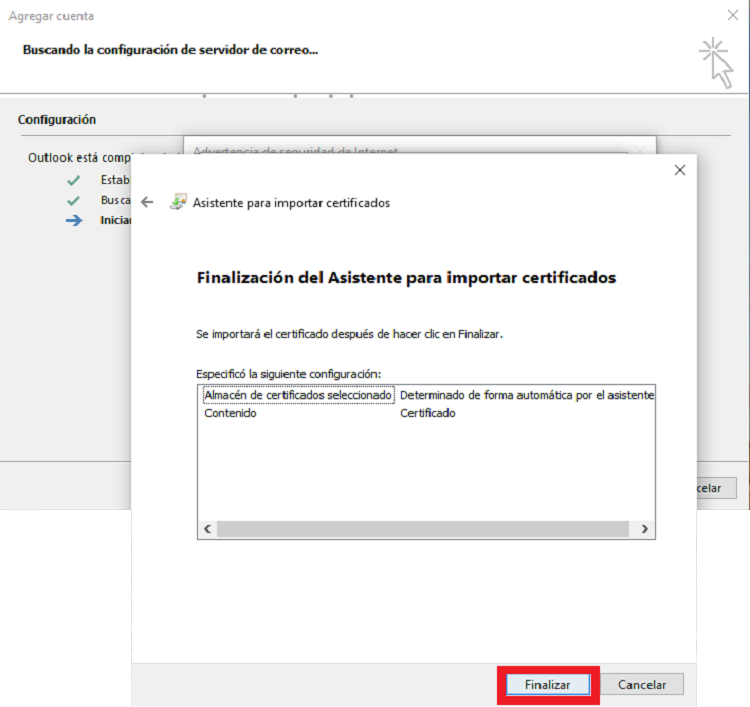

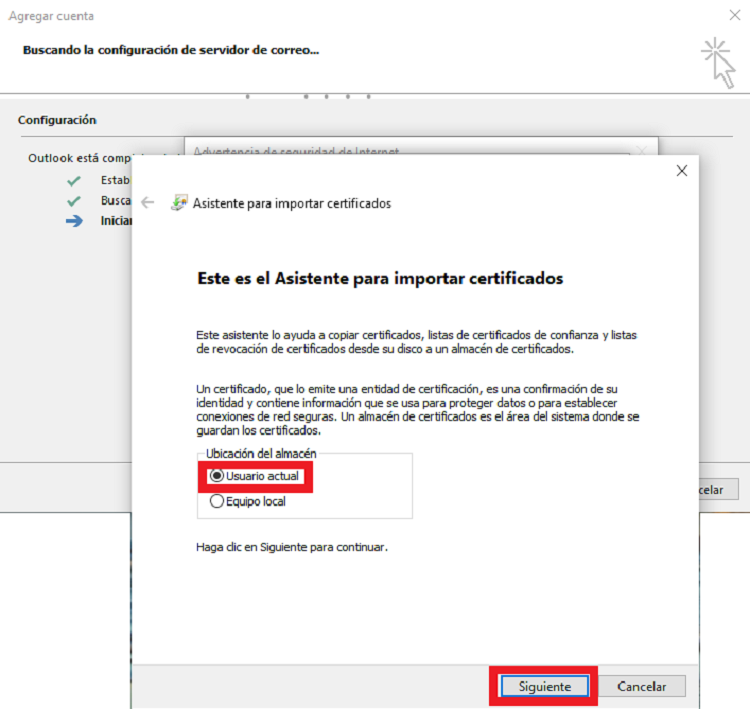

The certificate installation wizard will open. By default, the settings will be correct. Click on next if they match the images shown below:

enter image description here

enter image description here

enter image description here

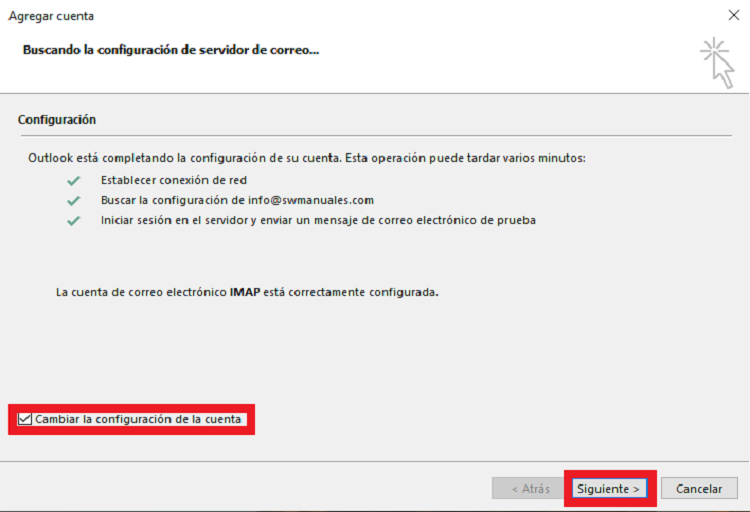

After the automatic configuration is complete, an alert message will be displayed stating that it has been configured correctly. The account, by default, will be configured in IMAP. In order to verify that the configuration has been carried out correctly and to be able to modify the account configuration to POP3, click on the "Change account configuration" box and click on Next:

enter image description here

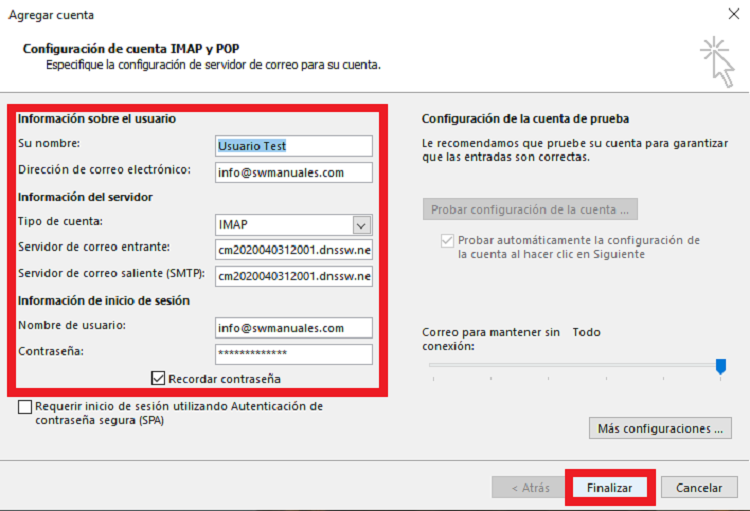

The configuration screen will open. Next, we check that the server data, the incoming and outgoing mail ports and the incoming mail protocol are the desired ones and click on Next:

enter image description here

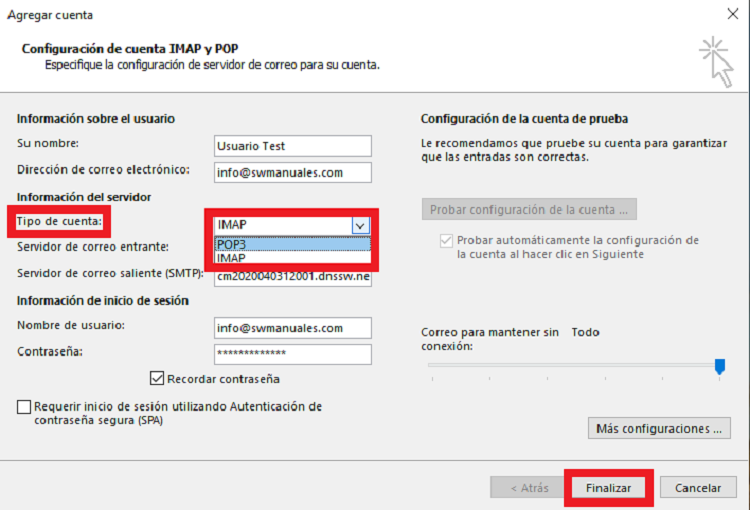

In "type of account", we will see that we can modify the configuration of the incoming mail protocol to IMAP or POP3:

enter image description here

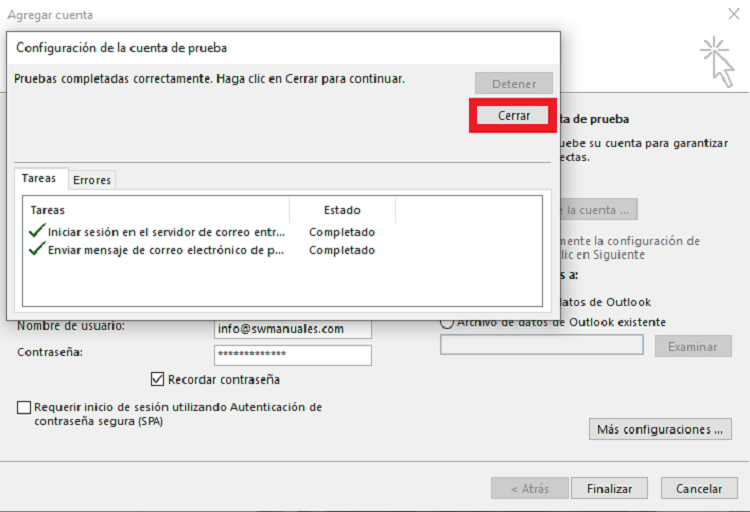

When you click finish, the system will perform a configuration test to ensure correct operation. We must click on ** Close**:

enter image description here

Finally, we can view our configured email account:

enter image description here

Set up an email account when one already exists

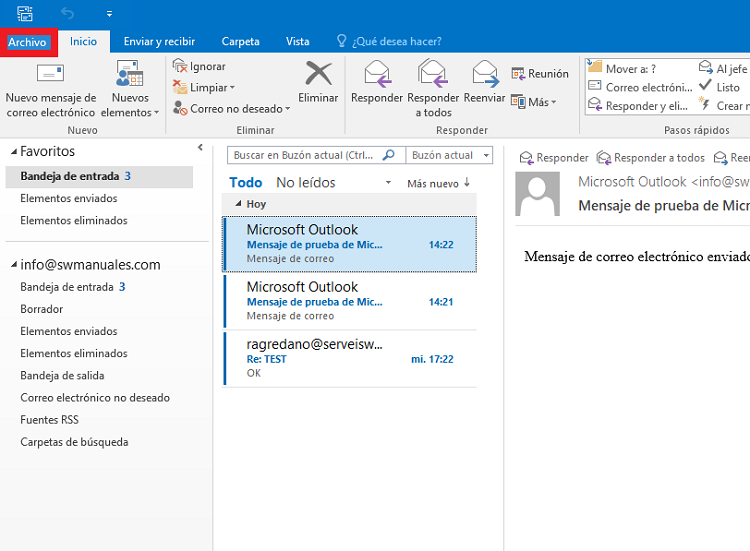

In order to configure the email account when we already have an account configured in Outlook, we must follow the following steps. First, we enter the Outlook application. Once inside, click on "File", located in the upper left:

enter image description here

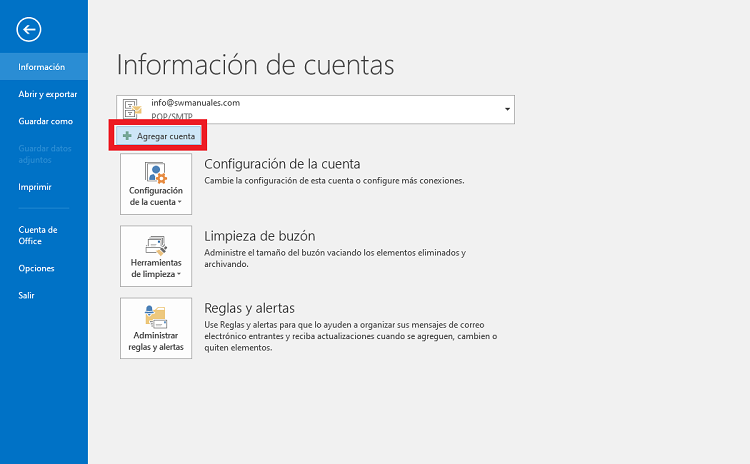

The account settings tab will open. In this section, without entering any other section, click on "Add account":

enter image description here

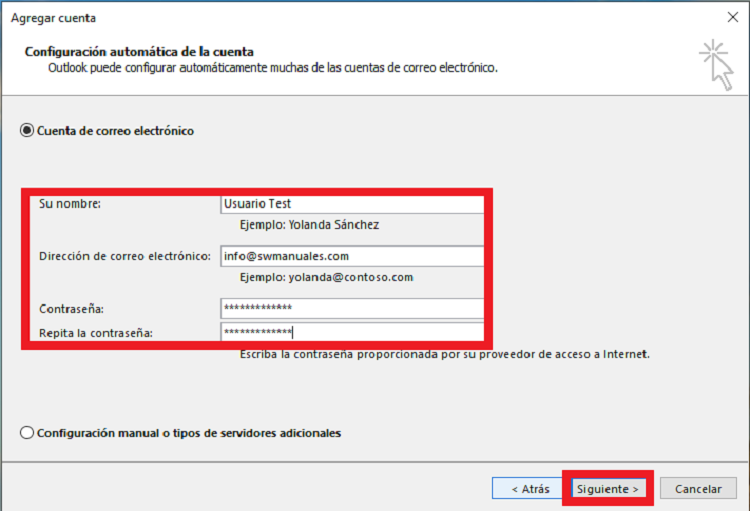

Automatic account setup will open. We must fill in the fields requested, Name (it is not necessary to specify any specific information, we can put the name we want), the email address to configure and the password to access the account:

enter image description here

We remember you that from SWPanel you will not be able to see the information about the email account password, because in compliance with ISO 27001, the LOPD and the RGPD, we do not store or provide personal codes, as well as we do not have access to the Email account keys we don't even provide them.

The moment the automatic configuration starts, Outlook will detect that the SSL certificate (if it has a certificate) is not "trusted". As in the case of Google, Microsoft only detects its own certificates as trusted certificates, that is, those that correspond to "hotmail.com", so we should not worry or think that our certificate is invalid, Unlike.

In order to proceed without any problem, we must follow a few extra steps.

Once the message appears, click on "see certificate":

enter image description here

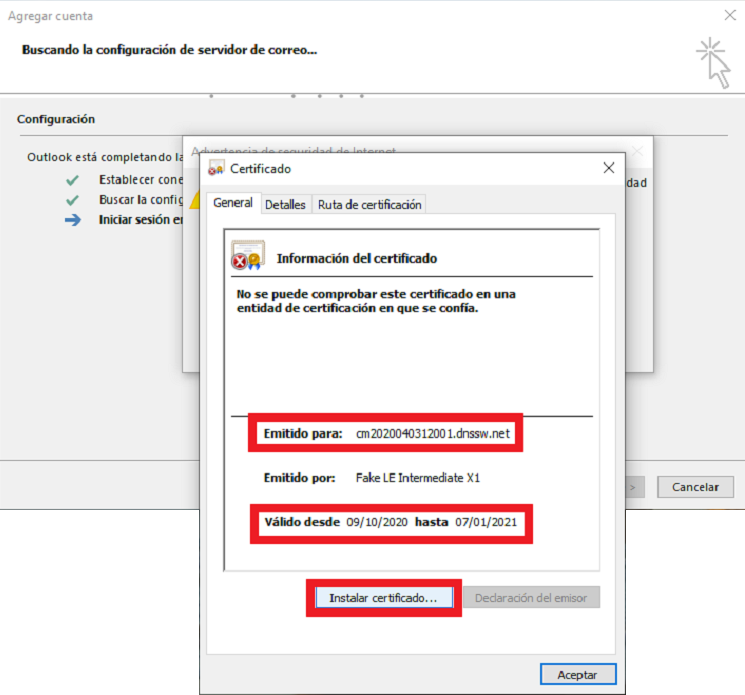

In the certificate information window, we check that the data of the server for which the certificate is issued are correct (our Cloud mail server should appear under the name of the certificate), as well as the expiration date of the certificate, and click in "install certificate":

enter image description here

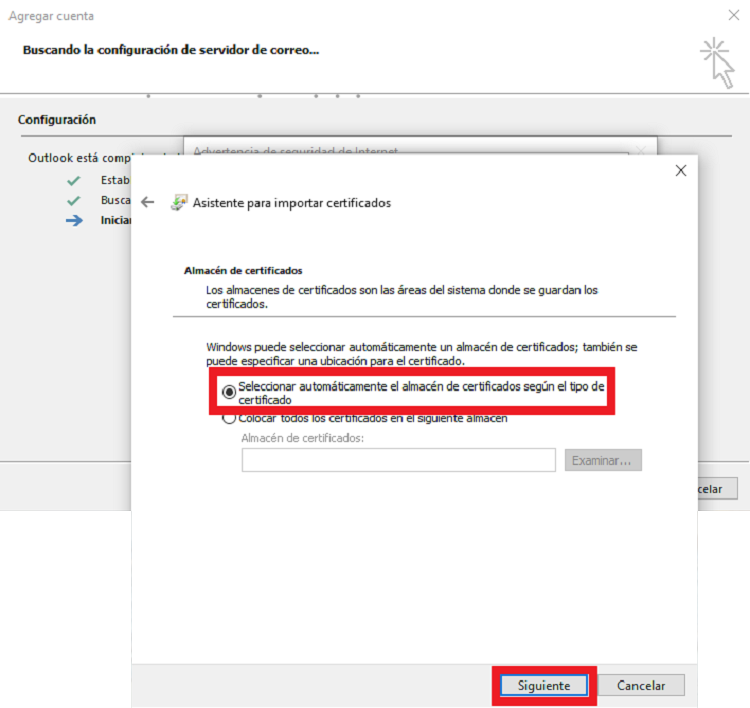

The certificate installation wizard will open. By default, the settings will be correct. Click on next if they match the images shown below:

enter image description here

enter image description here

enter image description here

After the automatic configuration is complete, an alert message will be displayed stating that it has been configured correctly. The account, by default, will be configured in IMAP. In order to verify that the configuration has been carried out correctly and to be able to modify the account configuration to POP3, click on the "Change account configuration" box and click on Next:

enter image description here

The configuration screen will open. Next, we check that the server data, the incoming and outgoing mail ports and the incoming mail protocol are the desired ones and click on Next:

enter image description here

In "type of account", we will see that we can modify the configuration of the incoming mail protocol to IMAP or POP3:

enter image description here

When clicking finish, the system will perform a configuration test to ensure correct operation. We must click on Close:

enter image description here

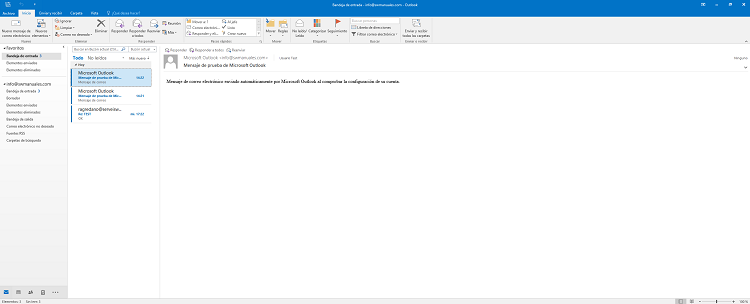

Finally, we can view our configured email account:

enter image description here
